Two variables are directly proportional if they increase at the same rate.

We looked at this algebraically earlier in the course, but now we will look at it geometrically. Two directly proportional variables can be represented by a line on a cartesian grid.

Examples

Use a graph to solve these examples:

Exercise

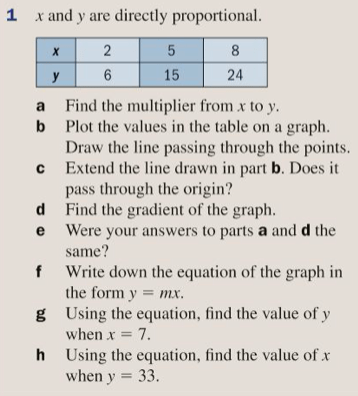

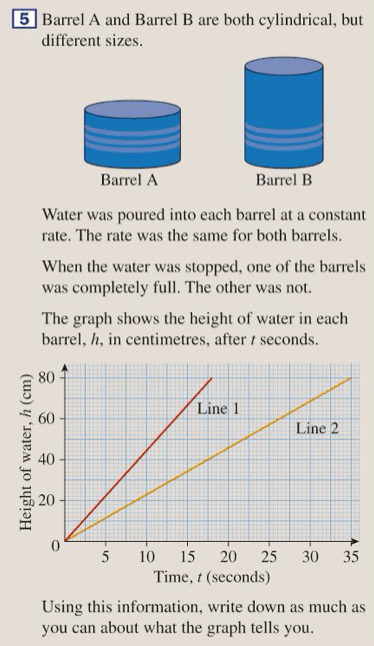

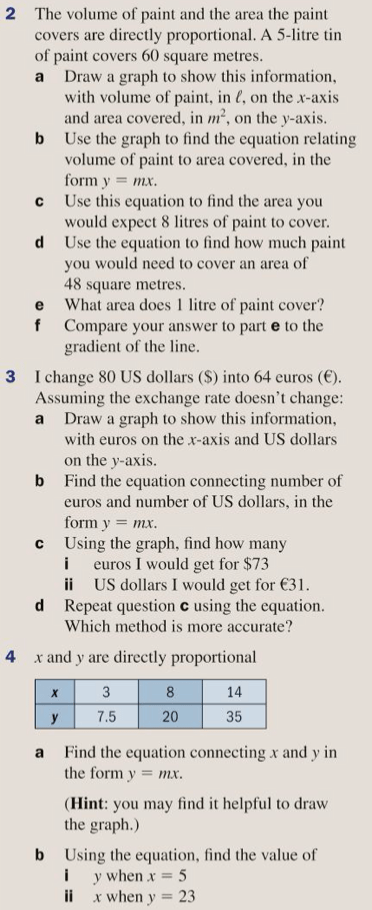

Let’s complete exercise 14I from pages 231 and 232 of the textbook;

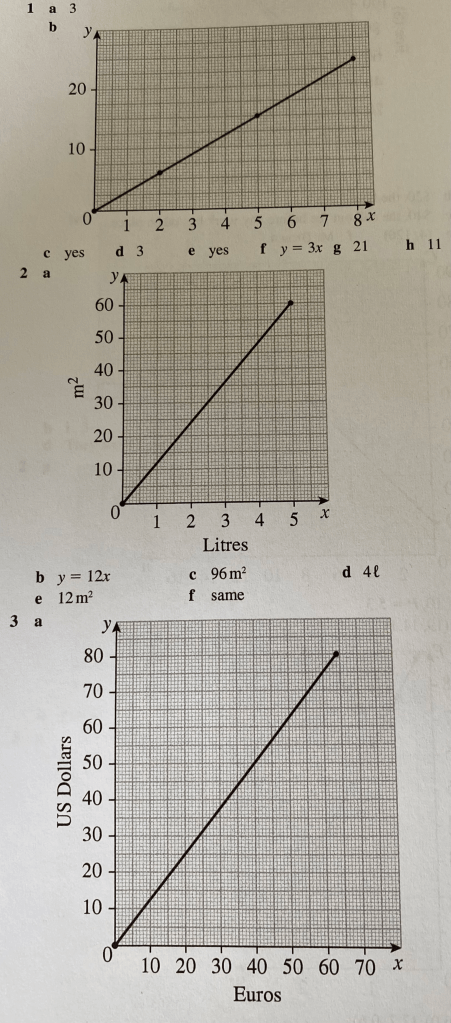

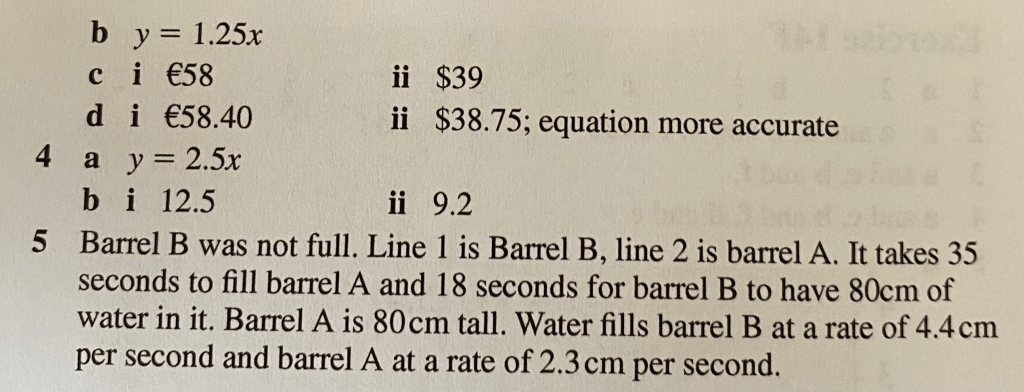

The answers are below:
